III. Display Screen Performance Parameters







 size

 65 inches




 Response time

 8ms




 aspect ratio

 16:9

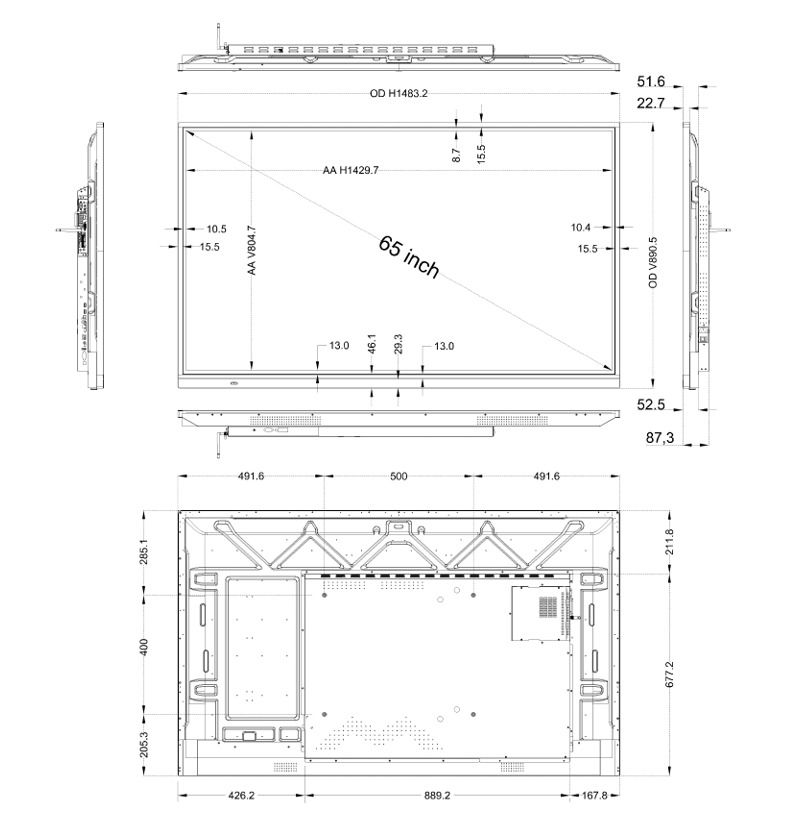

 Display size H*V mm

 14 29.7mm x 8 04.7mm




 Resolution

 4K@60Hz , 3840(H)×2160(V)




 Refresh rate

 60Hz




 Color saturation

 1.07B (10-bit)




 Color gamut NTSC (Typ)

 72 %




 Contrast (Typ)

 12 00:1




 Viewing angle

 178°(H/V)




 Tempered glass types

 The surface has an AG anti-glare treatment and a surface hardness of 7H.




 Backlight type

 D - LED




 Screen brightness (Typ)

 350 cd/m² ±10% ( Typical value at the nine-point center )




 Lifespan

 ≥ 30,000 hours




 Note: The peak brightness of the device will vary depending on the LCD glass model used. The information provided in this specification is for reference only!






 Ultra-thin and robust design: It adopts an all-aluminum alloy frame structure, an ultra-narrow bezel and a lightweight design, and is equipped with Mohs 7H high hardness explosion-proof tempered glass and AG anti-glare coating.

 High-quality display and touch: Supports full-channel 3840x2160p true 4K UHD display, adopts pure zero-bonding process, and achieves ±1mm millimeter-level high-precision infrared touch writing.

 Intelligent light-sensing adjustment: Supports ALS light-sensing function, which can automatically adjust the screen brightness according to the ambient light to provide an eye-friendly experience.

 Convenient front-panel interface: Multiple front-panel USB 3.0, HDMI, Type-C and Touch 2.0 ports, with support for automatic switching between channels, eliminating the need for frequent plugging and unplugging of external devices.

 Powerful connectivity features: Supports 2.4/5G dual-band WiFi and Bluetooth 5.0, has independent AP+STA dual-mode working mode, and supports RJ45 wired network connectivity, allowing Windows and Android systems to connect to the network simultaneously.

 Android 11/13 system: Equipped with Android 11.0 or 13.0 operating system (T982 main chip, 4GB RAM + 32GB ROM), with a wealth of educational and office software, such as whiteboard, file management, welcome sign-in wall, etc.

 High-speed wireless projection: Supports 5G WiFi high-speed AP hotspot function, and the wireless projection app can be optionally configured to support up to 9 screens in split-screen mode.

 Standardized OPS support: Supports the Chinese OPS-C standard 80-pin interface, facilitating the expansion of PC computer modules (i3/i5/i7 optional), with a maximum load power of 95W.

 High-quality sound system: Equipped with CH2.0 immersive speakers (2×8Ω 15W), and optional CH2.1 channel configuration with subwoofer.

 Environmentally friendly and energy-saving: The power consumption of the whole machine (65-inch) is ≤250W in standard mode and ≤0.5W in standby mode, which meets modern energy-saving standards.
